Scaling From 5‑Second Queries to 15 Million QPS

The Redis + Geohash playbook that turns GPS fire-hoses into single-digit-ms rides 🚀

so, it’s Friday night in downtown San Francisco 🎉

riders smash “Request a ride”

the Lyft app 🚗 screens freeze for 5 seconds.. enough time to delete and reopen TikTok

cause? a single MongoDB collection locked under a tsunami of GPS pings 😵‍💫

remedy? 1,000+ Redis shards + geohash 👇

in this post we’ll unpack exactly how Lyft’s location service leaped from one 5‑second query to ≈ 15 million requests per second at single‑digit‑millisecond latency.. and what parts you can steal for your own systems 🤝

---

what will be covered 👇

1. TL;DR for the impatient

2. The Friday‑Night Meltdown 😱

3. Root cause 🔍

4. The three‑step Redis makeover 🛠️

5. Deep dive: a ride‑search request, line‑by‑line

6. Ops & capacity planning 📊

7. Re‑usable system‑design takeaways 🤝

8. Interview one‑liners

---

the tl;dr

⚠️ most points here are coming from this presenation

• monolithic Mongo collection → global write lock.

  • reads and writes stalled for ≈ 5s

• geohash splits Earth into tiny squares; nearby squares share prefixes (great for range scans)

• each square → own Redis sorted‑set on its own shard

  • look ups = O(#cells) time complexity ≈ 9 sets

• nutcracker (twemproxy) + consistent hashing spread ~1 k shards

  • lose one → only that slice of the map blinks

• result: 15 M QPS @ p99 < 10 ms

  • .. and headroom to 4× peak

• perfect match for soft‑state data - drivers resend GPS every few seconds, so cache loss == no drama

---

the Friday‑Night meltdown

back in 2014 a rider search looked like this:

every write/read hit the same index rows for busy regions.

Friday night surge? → global lock leading to 5 second response time

i.e. riders & drivers churned..

---

what exactly was wrong ?

1. one giant table for driver GPS

2. sharding by city → hot shards (SF has way more traffic than ≫ Madeira 😅)

3. reads and writes collide on same rows

4. disk‑backed DB for data that expires in 30 s ⇒ wasted IO

---

the three‑step Redis makeover

hopefully this ‘table’ can help you vizualize how the impl had happen

now, lets move to a quick code demo (with some pseudo-code) 👇

what it does? 👇

• encodes the driver’s latitude/longitude into a 5‑character Geohash cell

• writes the raw coordinate (SET) and adds the driver ID to a time‑scored sorted set for that cell (ZADD)

• performs an ad‑hoc TTL by deleting entries older than 30 seconds (ZREMRANGEBYSCORE).

• executes all three commands in one Redis pipeline round‑trip (via pipe.sync())

now what does this do??

• computes the rider’s current Geohash cell and its eight neighbors

• pipelines a ZRANGE for each cell to fetch driver IDs in a single network hop

• flattens & de‑duplicates the IDs into a Java Set<String> for later ranking (e.g., by ETA)

… only 9 Redis reads - all parallelised by the proxy

---

a ride‑search walkthrough..

1. Driver ping → App → API → Hashes location & hits twemproxy

2. twemproxy hashes the geo_id → picks shard → SET + ZADD

3. rider search → Backend computes rider cell + 8 neighbors

4. fan‑out 9 ZRANGE calls → twemproxy multiplexes them

5. fan‑in results, filter by ETA & driver state, return < 30 ms end‑to‑end

here’s a diagram to help you vizualize how this works 😵‍💫

---

ops & capacity planning 📊

• 1 k+ Redis instances across multiple EC2 ASGs (Auto Scaling Groups)

• 4× headroom rule ⇒ survive loss of an AZ (Availability Zones) without throttling

• Nutcracker keeps client connection count low & supports pipeline retries

• dashboards: QPS (Queries Per Second) per shard, memory fragmentation, eviction hits

• chaos drill: kill 5% of nodes weekly; expect auto‑heal in < 1 min

---

re‑usable takeaways 🤝

• shard by access pattern, not by obvious domain entity (cities were prone to hot-shards; 1‑km squares weren’t)

• soft‑state (GPS pings) → in‑memory cache; recovery = data replay, not backup restore

• sorted sets double as index and TTL sweeper

• keep capacity = 4 × peak so one failure ≠ outage

• pipeline aggressively (MULTI/EXEC or client pipelining) to amortise network RTT

---

interview one‑liners 🎤

you can use this as quick-liners in some interview, speaking from experience - interviewers really love when you add such ‘flash-references’. why?

because it showcases that you are interested into diving deeper in problems and see how the bug guys did it! 🤝

geohash everywhere: “We slice Earth into 1 km Geohash cells; each cell lives in its own Redis sorted‑set. A rider query touches 9 cells → constant‑time lookup.”

soft‑state cache: “Driver GPS is ephemeral—if a Redis shard dies, drivers re‑ping within 30 s, so availability trumps persistence.”

resilience by design: “Consistent hashing + 4× headroom lets us pull the plug on a shard and still push 15 M QPS at p99 < 10 ms.”

---

references & further reading 📚

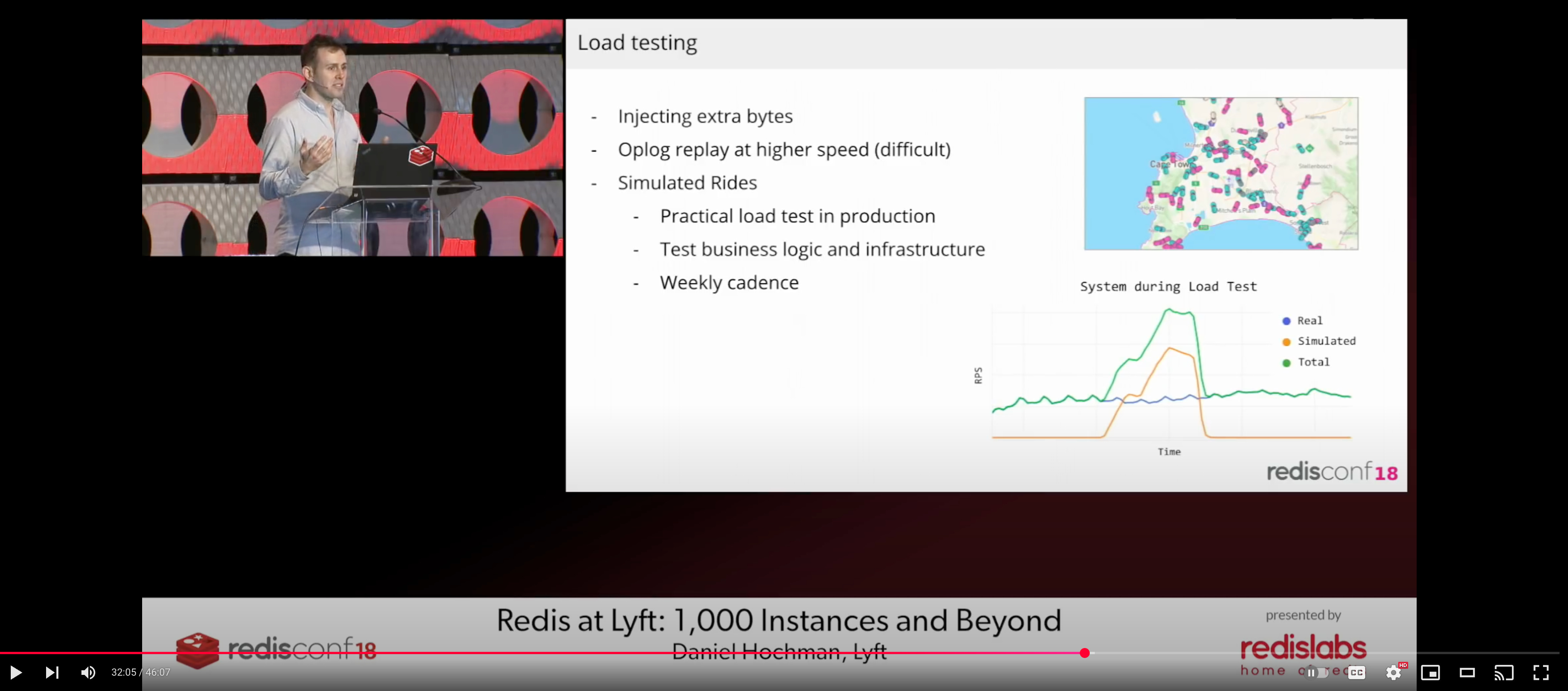

• Daniel Hochman, Geospatial Indexing at Scale – The 15 M QPS Redis Architecture Powering Lyft 👇



• Neo Kim, How Lyft Supports Rides to 21 M Users

• Redis GEO commands docs (why Lyft rolled its own - additionally check this one for the product PoV)

• Lyft engineer made a YouTube vid on Redis’s YouTube channel. Top tier video, definitely worth a watch!

---

see you next Sunday! ❤️

hope you found this valuable! The video and going deeper with the blog-article really helped me to master the theory behind scaling real world systems!

let’s crush it this week!

oh.. here’s a link to the YouTube vid that went over the whole migration!
